Electrical Socket Box

Shangfeng is willing to cooperate sincerely with all customers to grow and develop together.

SFK-1236 Large-Diameter Cable Entry Industrial Connector Third Generation High-end Industrial Connectors

SFK-1236 Large-Diameter Cable Entry Industrial Connector

Earth contact position 4h
Rated current(A) 63
Pole 3

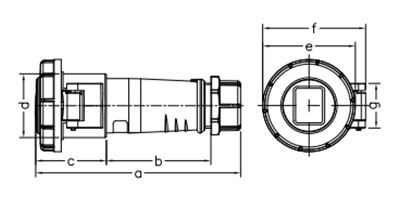

Dimension(mm) a 257
b 112.5
c 85
d 77.4
e 108
f 34
g 92
Cable nominal cross-section area(mm²) 10-16
Current(A):  16A,32A
Voltage(V):  110-130V~2P+E
Protection degree:  IP44

SFK-1237 Electrical 220–240V Industrial Connector Third Generation High-end Industrial Connectors

SFK-1237 Electrical 220–240V Industrial Connector

Earth contact position 6h
Rated current(A) 63
Pole 3

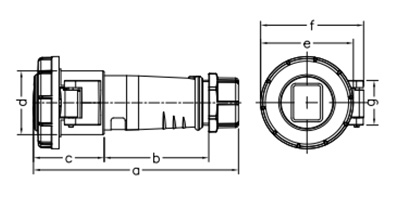

Dimension(mm) a 257
b 112.5
c 85
d 77.4
e 108
f 34
g 92
Cable nominal cross-section area(mm²) 10-16
Current(A):  63A
Voltage(V):  220-240V~2P+E
Protection degree:  IP44

SFK-1241 IP44 High Voltage Industrial Connector Third Generation High-end Industrial Connectors

SFK-1241 IP44 High Voltage Industrial Connector

Earth contact position 6h
Rated current(A) 63
Pole 4

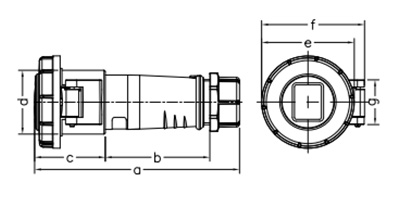

Dimension(mm) a 257
b 112.5
c 85
d 77.4
e 108
f 34
g 92
Cable nominal cross-section area(mm²) 10-16
Current(A):  63A
Voltage(V):  380-415V~3P+E
Protection degree:  IP44

SFK-1245 IP44 Electrical Safety Industrial Connector Third Generation High-end Industrial Connectors

SFK-1245 IP44 Electrical Safety Industrial Connector

Earth contact position 6h
Rated current(A) 63
Pole 5

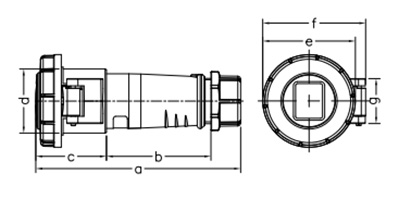

Dimension(mm) a 257
b 112.5
c 85
d 77.4
e 108
f 34
g 92
Cable nominal cross-section area(mm²) 10-16
Current(A):  63A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP44

SFK-539 / SFK-551 IP67 2P+E Waterproof Industrial Connector Third Generation High-end Industrial Connectors

SFK-539 / SFK-551 IP67 2P+E Waterproof Industrial Connector

Earth contact position 4h
Rated current(A) 16 32
Pole 3
Dimension(mm) a 158.6 199.2
b 81 102.7
c 54.7 67.5
d 49.5 64.2
e 71.7 95.5
f 79.6 98.7
g 34.7 37
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A,32A
Voltage(V):  110-130V~2P+E
Protection degree:  IP67

SFK-540 / SFK-552 IEC60309 Standard Voltage 220–240V Industrial Connector Third Generation High-end Industrial Connectors

SFK-540 / SFK-552 IEC60309 Standard Voltage 220–240V Industrial Connector

Earth contact position 6h
Rated current(A) 16 32
Pole 3
Dimension(mm) a 158.6 199.2
b 81 102.7
c 54.7 67.5
d 49.5 64.2
e 71.7 95.5
f 79.6 98.7
g 34.7 37
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A,32A
Voltage(V):  220-240V~2P+E
Protection degree:  IP67

SFK-544 / SFK-556 3P+E Three-Phase Industrial Connector Third Generation High-end Industrial Connectors

SFK-544 / SFK-556 3P+E Three-Phase Industrial Connector

Earth contact position 6h
Rated current(A) 16 32
Pole 4
Dimension(mm) a 158.6 199.2
b 80.6 102.7
c 54.9 67.5
d 55.7 64.2
e 80.6 95.5
f 85.2 98.7
g 37 37
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A,32A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

SFK-550 / SFK-562 3P+N+E Power Distribution Industrial Connector Third Generation High-end Industrial Connectors

SFK-550 / SFK-562 3P+N+E Power Distribution Industrial Connector

Earth contact position 6h
Rated current(A) 16 32
Pole 5
Dimension(mm) a 142 200
b 119 103.2
c 56 67.8
d 63 70.8
e 89 102
f 92.8 104.9
g 37 37
Cable nominal cross-section area(mm²) 1.5-2.5 4-6
Current(A):  16A,32A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

SFK-1573 / SFK-3389 110–130V 4H Position-Keyed Industrial Connector Third Generation High-end Industrial Connectors

SFK-1573 / SFK-3389 110–130V 4H Position-Keyed Industrial Connector

Earth contact position 6h
Rated current(A) 63 125
Pole 3
Dimension(mm) a 260 300
b 104 140
c 95.8 100
d 77.4 89.5
e 112.5 123
f 109 121
g 34 34.5
Cable nominal cross-section area(mm²) 10-16 25-35
Current(A):  63A,125A
Voltage(V):  110-130V~2P+E
Protection degree:  IP67

SFK-1574 / SFK-3390 IP67 Fast-Lock Industrial Connector Third Generation High-end Industrial Connectors

SFK-1574 / SFK-3390 IP67 Fast-Lock Industrial Connector

Earth contact position 6h
Rated current(A) 63 125
Pole 3
Dimension(mm) a 260 300
b 104 140
c 95.8 100
d 77.4 89.5
e 112.5 123
f 109 121
g 34 34.5
Cable nominal cross-section area(mm²) 10-16 25-35
Current(A):  63A,125A
Voltage(V):  220-240V~2P+E
Protection degree:  IP67

SFK-1117 / SFK-1450 Three-Phase 380–415V Industrial Connector Third Generation High-end Industrial Connectors

SFK-1117 / SFK-1450 Three-Phase 380–415V Industrial Connector

Earth contact position 6h
Rated current(A) 63 125
Pole 4
Dimension(mm) a 260 300
b 104 140
c 95.8 100
d 77.4 89.5
e 112.5 123
f 109 121
g 34 34.5
Cable nominal cross-section area(mm²) 10-16 25-35
Current(A):  63A,125A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

SFK-1121 / SFK-1454 Ultra-High Current Industrial Connector Third Generation High-end Industrial Connectors

SFK-1121 / SFK-1454 Ultra-High Current Industrial Connector

Earth contact position 6h
Rated current(A) 63 125
Pole 5
Dimension(mm) a 260 300
b 104 140
c 95.8 100
d 77.4 89.5
e 112.5 123
f 109 121
g 34 34.5
Cable nominal cross-section area(mm²) 10-16 25-35
Current(A):  63A,125A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67
