Introduction

The Hide direct socket, a product under the SFN series classification, is designed to meet the needs of various industrial applications. This advanced socket system is engineered to provide reliability, efficiency, and versatility, making it an essential component for numerous industrial settings. In this article, we will explore the advantages, features, and applications of the Hide direct socket, demonstrating why it is a preferred choice for many industrial operations.

Product Advantages

1. Enhanced Durability

- Robust Construction: The Hide direct socket is built with high-quality materials that ensure long-term durability and resistance to wear and tear, even in harsh industrial environments.
- Corrosion Resistance: Special coatings and treatments are applied to the Hide direct socket to protect it from corrosion, extending its lifespan and maintaining its performance over time.
- Impact Resistance: The sturdy design of the Hide direct socket allows it to withstand significant physical impacts, ensuring consistent functionality in demanding settings.

2. Superior Performance

- High Conductivity: The Hide direct socket is designed to offer electrical conductivity, minimizing power loss and enhancing overall efficiency.
- Thermal Management: Effective thermal management features are integrated into the Hide direct socket, preventing overheating and ensuring stable operation under high load conditions.
- Reliable Connections: With precise engineering, the Hide direct socket provides secure and reliable electrical connections, reducing the risk of accidental disconnections.

3. Easy Installation and Maintenance

- User-Friendly Design: The Hide direct socket is designed for straightforward installation, minimizing downtime and simplifying the setup process.
- Modular Components: Its modular design allows for easy replacement and upgrades of individual components, making maintenance more manageable and cost-effective.
- Clear Instructions: Comprehensive installation and maintenance guides accompany the Hide direct socket, assisting users in achieving performance with minimal effort.

Product Features

1. Versatile Connectivity Options

- Multiple Sizes: The Hide direct socket is available in various sizes to accommodate different industrial needs and specifications.
- Compatibility: It is compatible with a wide range of equipment and systems, providing flexibility in its applications.
- Customizable Configurations: Users can customize the configurations of the Hide direct socket to meet specific operational requirements.

2. Advanced Safety Features

- Insulation: High-grade insulation materials are used in the Hide direct socket to ensure safe operation and prevent electrical hazards.
- Overload Protection: Integrated overload protection mechanisms safeguard the socket and connected equipment from damage due to excessive current.
- Safety Certifications: The Hide direct socket meets various international safety standards and certifications, assuring users of its safety and reliability.

3. Efficient Design

- Compact Size: Despite its advanced features, the Hide direct socket maintains a compact design, saving space and allowing for easy integration into different setups.
- Energy Efficiency: The design prioritizes energy efficiency, reducing operational costs and environmental impact.
- Low Maintenance: With minimal maintenance requirements, the Hide direct socket ensures continuous performance without frequent interventions.

Product Applications

1. Manufacturing Plants

- Assembly Lines: The Hide direct socket is ideal for assembly lines, where reliable electrical connections are crucial for uninterrupted production processes.
- Heavy Machinery: Its robust construction and high conductivity make it suitable for powering heavy machinery and equipment.
- Automation Systems: The socket's versatility and reliability support various automation systems, enhancing efficiency and productivity.

2. Power Distribution Networks

- Substations: The Hide direct socket can be used in electrical substations, ensuring stable and efficient power distribution.
- Renewable Energy: It is compatible with renewable energy systems, such as solar and wind power installations, facilitating the integration of green energy solutions.
- Backup Power Systems: The socket is also suitable for backup power systems, providing reliable connections for emergency power supply.

3. Commercial Buildings

- HVAC Systems: In commercial buildings, the Hide direct socket supports HVAC systems, ensuring comfortable and controlled indoor environments.
- Lighting Installations: Its high conductivity and reliable connections make it ideal for extensive lighting installations.
- Elevators and Escalators: The socket can power elevators and escalators, ensuring smooth and safe operation in high-traffic areas.

Conclusion

In conclusion, the Hide direct socket, a secondary classification under the SFN series, stands out due to its durability, performance, and ease of installation and maintenance. Its versatile connectivity options, advanced safety features, and efficient design make it a valuable asset in various industrial applications. Whether in manufacturing plants, power distribution networks, or commercial buildings, the Hide direct socket provides reliable and efficient solutions, demonstrating its multifaceted utility and reliability.

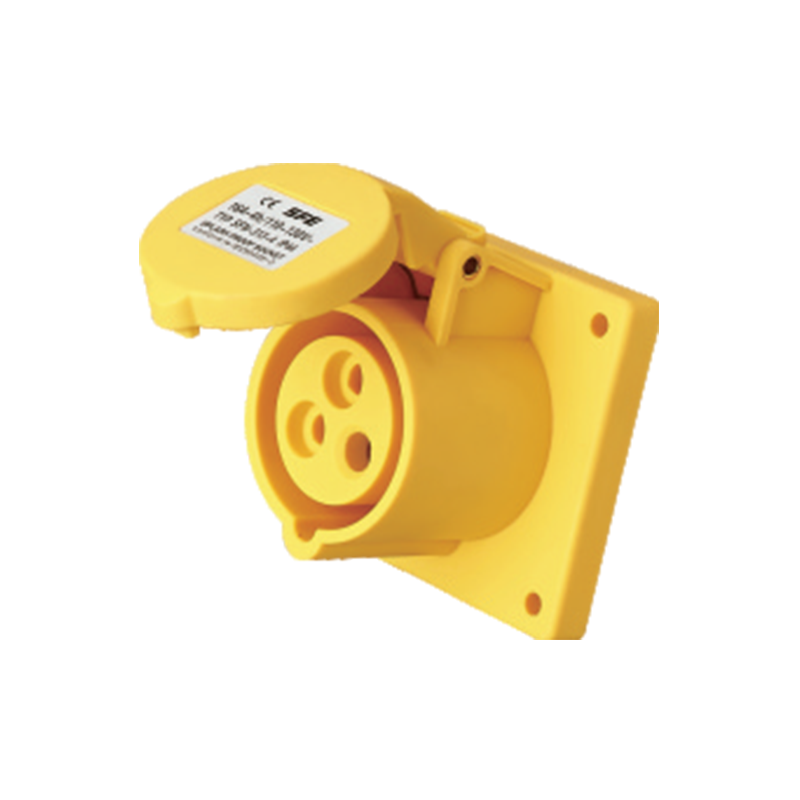

SFN-313-4 SFN-3234-4 Hide Direct Socket

SFN-313-4 SFN-3234-4

Earth contact position 4h
Rated current(A) 16 32
Pole 3

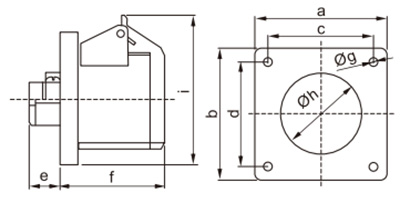

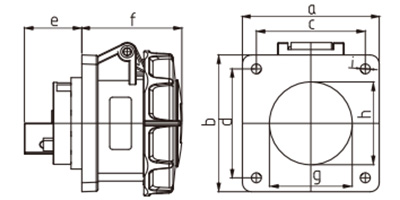

Dimension(mm) axb 75 75
cxd 61 61
e 22 24
f 60 70
g 5 5
h 50 55
i 87 95
Cable nominal cross-section area(mm²) 1-2.5 2.5-6
Contact us
Current(A):  16A, 32A
Voltage(V):  110-130V~2P+E
Protection degree:  IP44

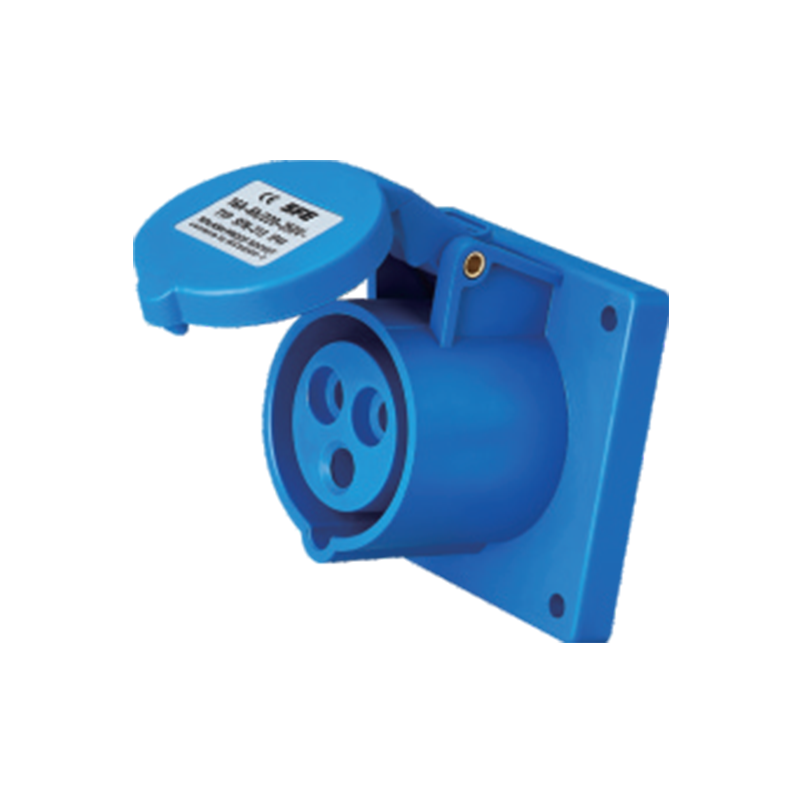

SFN-313 SFN-323 Hide Direct Socket

SFN-313 SFN-323

Earth contact position 6h
Rated current(A) 16 32
Pole 3
Dimension(mm) axb 75 75
cxd 61 61
e 22 24
f 60 70
g 5 5
h 50 55
i 87 95
Cable nominal cross-section area(mm²) 1-2.5 2.5-6
Contact us
Current(A):  16A, 32A
Voltage(V):  220-240V~2P+E
Protection degree:  IP44

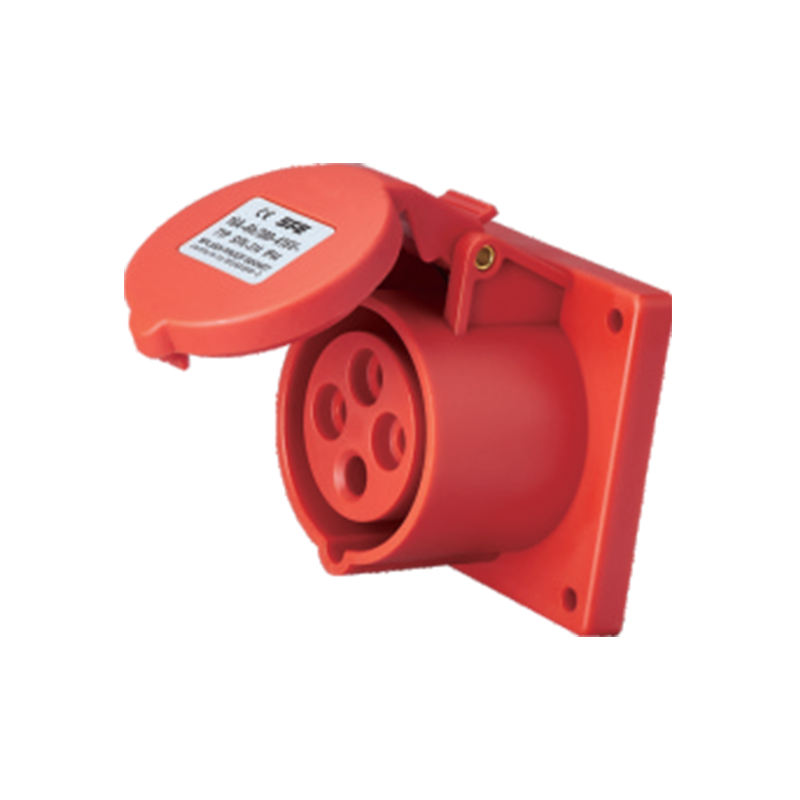

SFN-314 SFN-324 Hide Direct Socket

SFN-314 SFN-324

Earth contact position 6h
Rated current(A) 16 32
Pole 4
Dimension(mm) axb 75 75
cxd 61 61
e 17 24
f 59 69
g 5 5
h 50 55
i 88 95
Cable nominal cross-section area(mm²) 1-2.5 2.5-6
Contact us
Current(A):  16A, 32A
Voltage(V):  380-415V~3P+E
Protection degree:  IP44

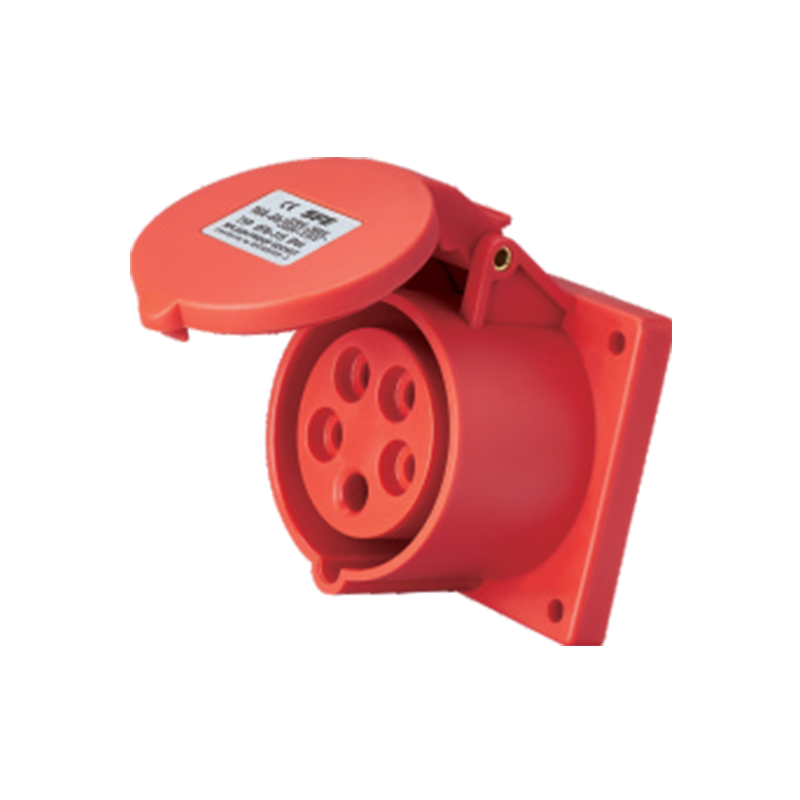

SFN-315 SFN-325 Hide Direct Socket

SFN-315 SFN-325

Earth contact position 6h
Rated current(A) 16 32
Pole 5
Dimension(mm) axb 75 75
cxd 61 61
e 17 22
f 59 71
g 5 5
h 55 60
i 92 100
Cable nominal cross-section area(mm²) 1-2.5 2.5-6
Contact us
Current(A):  16A, 32A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP44

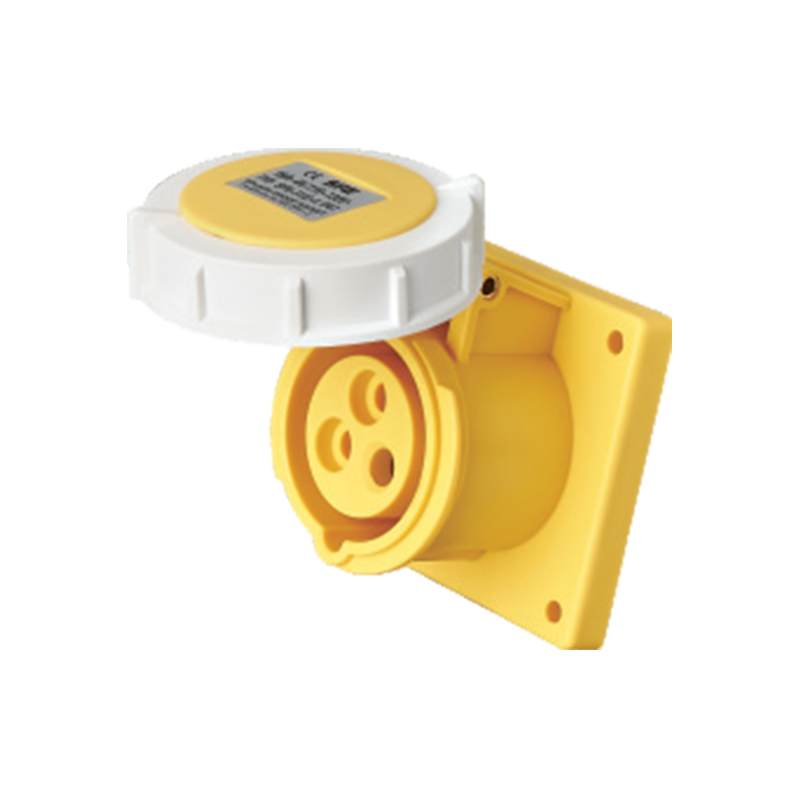

SFN-3132-4 SFN-3232-4 Hide Direct Socket

SFN-3132-4 SFN-3232-4

Earth contact position 4h
Rated current(A) 16 32
Pole 3

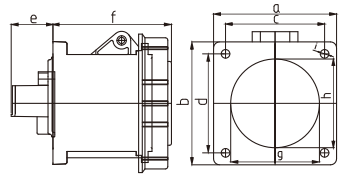

Dimension(mm) a 75 75
b 75 75
c 61 61
d 61 61
e 18 24
f 63 70
g 50 55
h 50 55
i 5 5
Cable nominal cross-section area(mm²) 1-2.5 2.5-6
Contact us
Current(A):  16A, 32A
Voltage(V):  110-130V~2P+E
Protection degree:  IP67

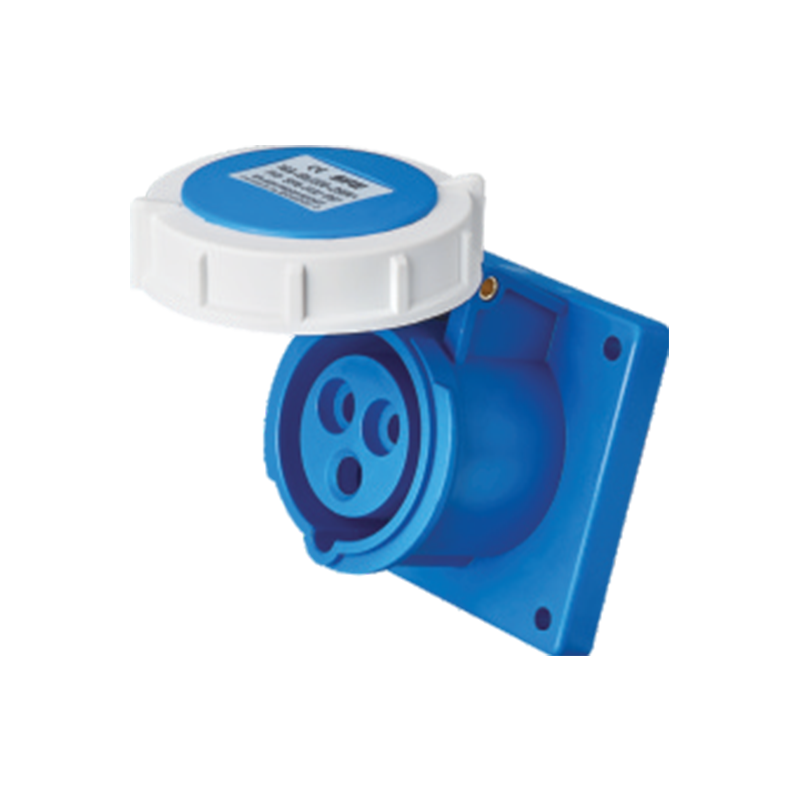

SFN-3132 SFN-3232 Hide Direct Socket

SFN-3132 SFN-3232

Earth contact position 6h
Rated current(A) 16 32
Pole 3
Dimension(mm) a 75 75
b 75 75
c 61 61
d 61 61
e 18 24
f 63 70
g 50 55
h 50 55
i 5 5
Cable nominal cross-section area(mm²) 1-2.5 2.5-6
Contact us
Current(A):  16A, 32A
Voltage(V):  220-240V~2P+E
Protection degree:  IP67

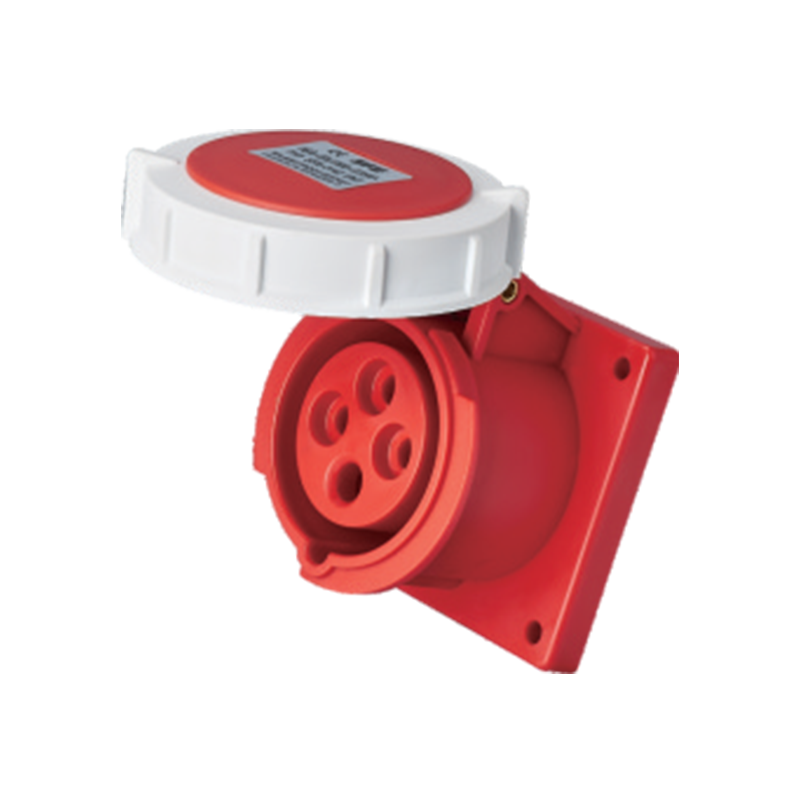

SFN-3142 SFN-3242 Hide Direct Socket

SFN-3142 SFN-3242

Earth contact position 6h
Rated current(A) 16 32
Pole 3
Dimension(mm) a 75 75
b 75 75
c 61 61
d 61 61
e 18 24
f 63 70
g 50 55
h 50 55
i 5 5
Cable nominal cross-section area(mm²) 1-2.5 2.5-6
Contact us
Current(A):  16A, 32A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

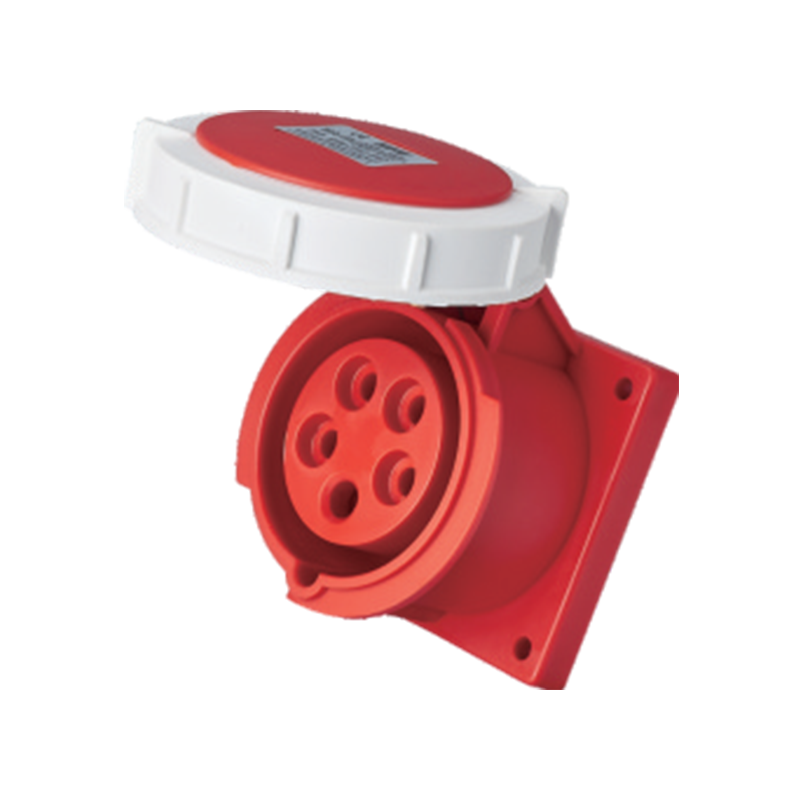

SFN-3152 SFN-3252 Hide Direct Socket

SFN-3152 SFN-3252

Earth contact position 6h
Rated current(A) 16 32
Pole 5
Dimension(mm) a 75 75
b 75 75
c 61 61
d 61 61
e 18 24
f 63 76
g 55 60
h 55 60
i 5 5
Cable nominal cross-section area(mm²) 1-2.5 2.5-6
Contact us
Current(A):  16A, 32A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

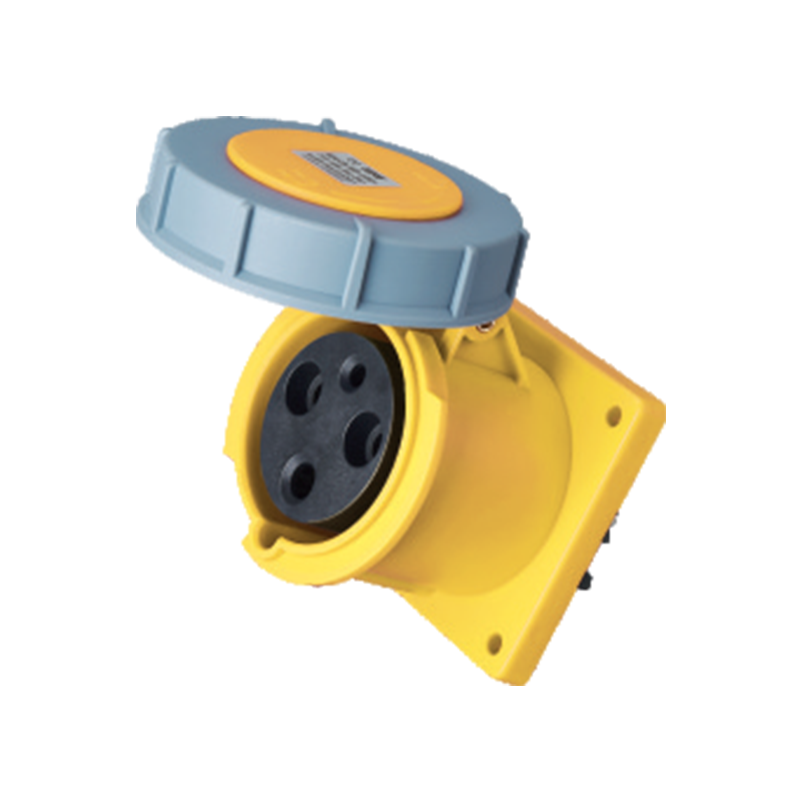

SFN-3332-4 SFN-3432-4 Hide Direct Socket

SFN-3332-4 SFN-3432-4

Earth contact position 4h
Rated current(A) 63 125
Pole 3
Dimension(mm) a 100 120
b 100 120
c 80 101
d 80 101
e 35 44
f 96 106
g 80 100
h 80 100
i 7 7
Cable nominal cross-section area(mm²) 6-16 16-50
Contact us
Current(A):  63A,125A
Voltage(V):  220-250V~2P+E
Protection degree:  IP67

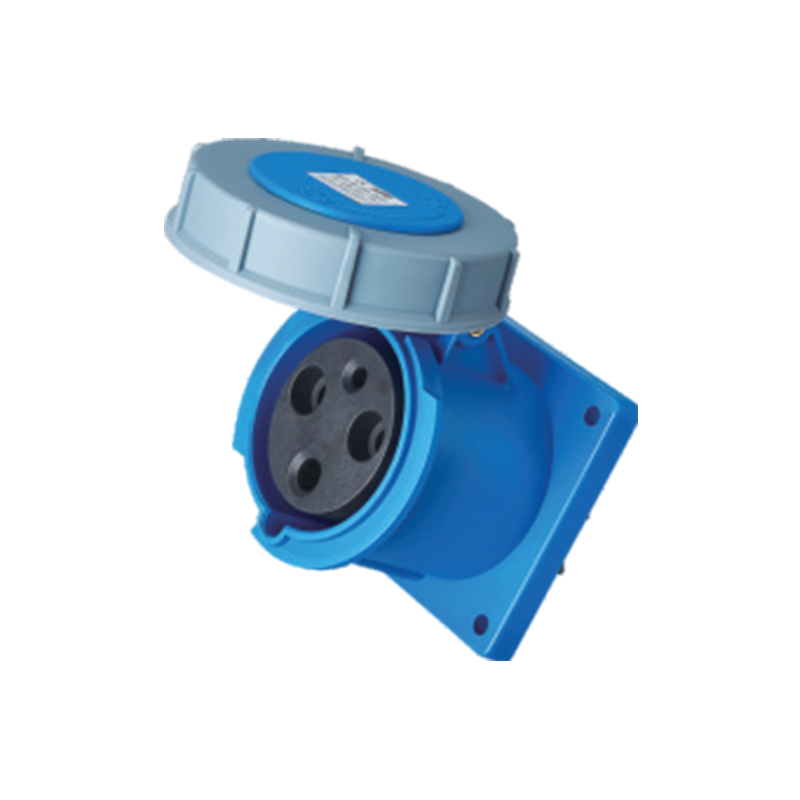

SFN-3332 SFN-3432 Hide Direct Socket

SFN-3332 SFN-3432

Earth contact position 6h
Rated current(A) 63 125
Pole 3
Dimension(mm) a 100 120
b 100 120
c 80 101
d 80 101
e 35 44
f 96 106
g 80 100
h 80 100
i 7 7
Cable nominal cross-section area(mm²) 6-16 16-50
Contact us
Current(A):  63A, 125A
Voltage(V):  220-250V~2P+E
Protection degree:  IP67

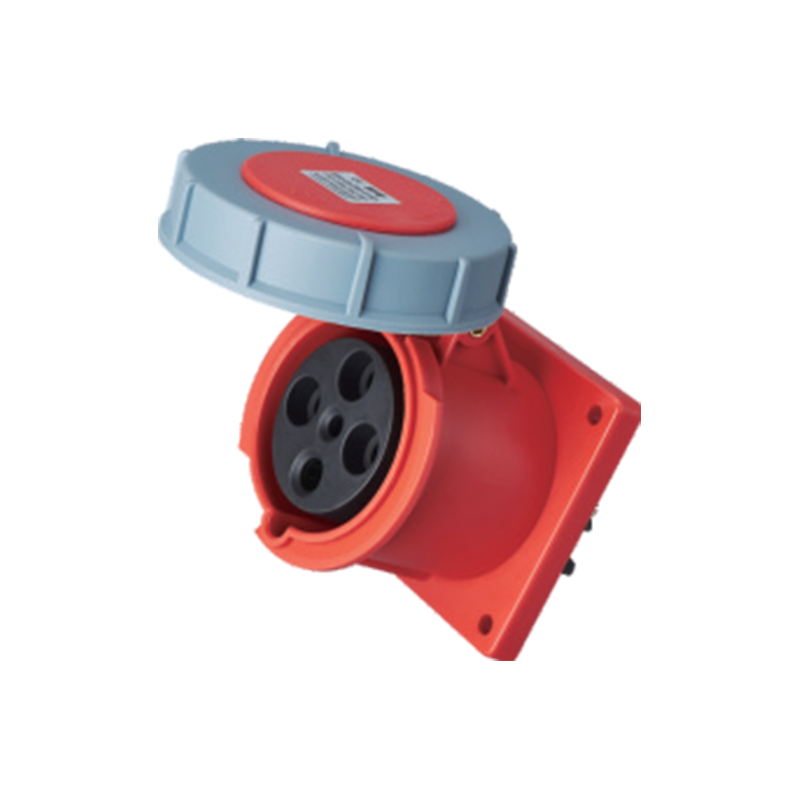

SFN-3342 SFN-3442 Hide Direct Socket

SFN-3342 SFN-3442

Earth contact position 6h
Rated current(A) 63 125
Pole 4
Dimension(mm) a 100 120
b 100 120
c 80 101
d 80 101
e 35 44
f 96 106
g 80 100
h 80 100
i 7 7
Cable nominal cross-section area(mm²) 6-16 16-50
Contact us
Current(A):  63A, 125A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

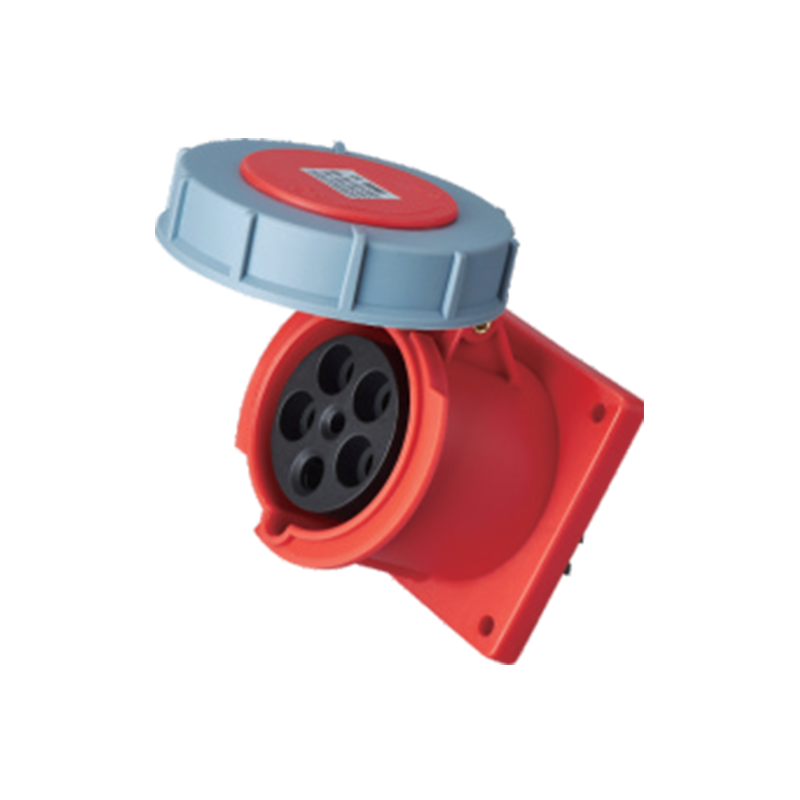

SFN-3352 SFN-3452 Hide Direct Socket

SFN-3352 SFN-3452

Earth contact position 6h
Rated current(A) 63 125
Pole 5
Dimension(mm) a 100 120
b 100 120
c 80 101
d 80 101
e 35 44
f 96 106
g 80 100
h 80 100
i 7 7
Cable nominal cross-section area(mm²) 6-16 16-50
Contact us
Current(A):  63A, 125A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67
