Outdoor Wall Mounted Industrial Socket: The Connection Point That Lives in the Weather

An industrial socket on an outside wall faces rain, dust, sun, and cold. It sits there, sometimes for months, waiting for a plug. When a machine, a tool, or a generator needs power, the socket has to work. No corrosion on the contacts. No water inside the housing. No cracks from UV. An outdoor wall mounted industrial socket is not an indoor socket with a lid. The enclosure, the sealing, and the contact design are all built for exposure.

Angled Down So Water Runs Off

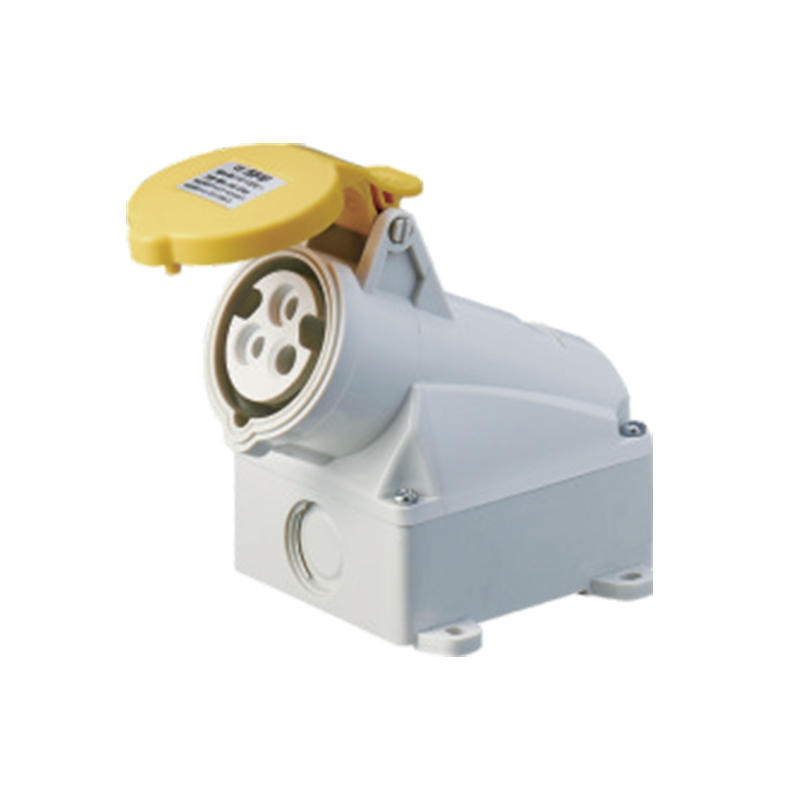

The plug entry faces down or angles downward. That is the first defense. Water runs off instead of pooling around the contacts. An outdoor wall mounted industrial socket with a downward entry works through rain and washdowns because gravity does half the sealing work.

The housing is glass-reinforced nylon or polycarbonate. It resists impact, oil, and UV. A socket that fades and cracks in the sun exposes the contacts. An outdoor wall mounted industrial socket using UV-stabilized material keeps its strength through years of exposure.

The lid seals the plug entry when the socket is idle. A spring-loaded lid closes itself. The gasket under the lid compresses against the housing and blocks water. A gasket that hardens in the cold or cracks in the sun fails. An outdoor wall mounted industrial socket with a UV-stabilized, cold-flexible gasket keeps sealing.

IP44 Keeps Splashes Out. IP67 Keeps Everything Out

The IP rating tells the protection level. IP44 resists splashes from any direction. It works under an awning or on a sheltered wall. IP67 survives temporary immersion and high-pressure washdowns. An outdoor wall mounted industrial socket rated IP67 seals the contacts even when the housing is hosed down.

The choice depends on the site. A socket on an exposed coastal wall needs more protection than one under a loading dock roof. An outdoor wall mounted industrial socket with a higher IP rating costs more and seals tighter. The buyer matches the rating to the exposure.

The cable gland is part of the seal. Water can track along the cable sheath into the terminal area. The gland clamps the sheath and blocks the path. An outdoor wall mounted industrial socket with a properly sized gland keeps the inside dry.

Here is what an outdoor wall mounted industrial socket needs to deliver:

• Glass-reinforced nylon or polycarbonate housing
• Downward plug entry for water runoff
• Spring-loaded lid with UV-stabilized gasket
• IP44 or IP67 rating matched to the site
• Cable gland sealing at the entry
• Plated contacts for corrosion resistance

Mounting Hardware That Does Not Rust

The socket mounts to the wall with screws or bolts. If the hardware rusts, the socket comes loose. An outdoor wall mounted industrial socket with stainless steel or coated steel fasteners stays put. The mounting plate or bracket gets the same treatment.

The contacts inside are brass with silver or nickel plating. Salt air and pollution attack bare metal. Plating keeps the contact resistance stable. An outdoor wall mounted industrial socket with properly plated contacts carries full rated current without heating.

Docks, Construction Sites, Washdown Areas

Marinas and docks mount sockets on posts near the water. Salt spray, constant moisture, and the occasional wave demand the high protection. Construction sites use outdoor sockets on temporary boards that sit outside for the whole job. Food plants and washdown areas hose the sockets along with the floor.

The Gasket That Gave Up

The lid gasket hardens after a season in the sun. The lid no longer seals. Water enters. The contacts corrode. An outdoor wall mounted industrial socket with a UV-stabilized gasket keeps sealing. The housing fades and cracks from UV. The socket fails at a mounting hole. UV-stabilized material prevents it. The cable gland loosens and water tracks inside. A properly tightened gland prevents it.

An outdoor wall mounted industrial socket sits in the weather, waiting. When the plug goes in, the power has to flow. Choose a socket with a sealed lid, plated contacts, and a housing that does not crack in the sun. The connection works first time. That is the job.
