SFK-5535 Outdoor Waterproof Wall-Mounted Socket Box

Amps		16A			32A			63A
Number of J poles		3	4	5	3	4	5	3	4	5
Sizes (mm²)	a	125	125	125	125	125	125	125	125	125
	b	125	125	125	125	125	125	125	125	125
	c	76	76	76	76	76	76	76	76	76
	d	135	135	135	153	153	153	149	149	149
	e	105	105	105	105	105	105	105	105	105
	f	105	105	105	105	105	105	105	105	105
Cross-sectional area of conductor (mm²)		1.5-2.5			4-6			10-16

110V

50a.60Hz

230V

50a.60Hz

400V

50a.60Hz

500V

50a.60Hz

>50-500V

100-300Hz

>50-500V

a.300-500Hz

3,4,5

4,4,4

3,4,5

6,9,9

3,4,5

9,6,6

3,4,5

7,7,7

3,4,5

10,10,10

3,4,5

2,2,2

SFK-5545 16-63A Red Wall-Mounted Industrial Socket Box

Amps		16A			32A			63A
Number of J poles		3	4	5	3	4	5	3	4	5
Sizes (mm²)	a	125	125	125	125	125	125	125	125	125
	b	125	125	125	125	125	125	125	125	125
	c	76	76	76	76	76	76	76	76	76
	d	135	135	135	153	153	153	149	149	149
	e	105	105	105	105	105	105	105	105	105
	f	105	105	105	105	105	105	105	105	105
Cross-sectional area of conductor (mm²)		1.5-2.5			4-6			10-16

110V

50a.60Hz

230V

50a.60Hz

400V

50a.60Hz

500V

50a.60Hz

>50-500V

100-300Hz

>50-500V

a.300-500Hz

3,4,5

4,4,4

3,4,5

6,9,9

3,4,5

9,6,6

3,4,5

7,7,7

3,4,5

10,10,10

3,4,5

2,2,2

Sf-02 Plastic Base Residential Distribution Box

Beautiful in appeara nce, easy installation, complete specifications, safety and reliable, It's applicable for special, waterproof,dustproofand corrosion-proof location.
Standard: IEC60529,EN60309
Degree of Protection: IP66

Circuit Way	Wall Mounted
Circuit Way	L(mm)	W(mm)	H(mm)
6way	165	200	100
9way	219	200	100
12way	273	230	110
18way	381	230	110
24way	273	380	110
36way	381	380	110

IP65 ABS Or PC Material Plastic Waterproof Box

Waterproof, dustprrof, corrosion resistance, high strength insulation.
Opening hole according to user requirements, specifications, eass ofinstallation.
Optional flame retardant ABS or PC material plastic.
Standard: IEC60529, EN60309.
Degree of Protection: IP65.

L(mm)	W(mm)	H(mm)
110	80	70
130	80	70
180	80	70
250	80	70
100	100	75
125	125	75
200	150	100
250	150	100
340	220	150
400	300	160
460	270	160
520	300	160
540	360	180

SF50×50 IP55 CE Waterproof Junction Box

Dimension Specification	L	W	H	Hole	IP
SF 50×50	50		50	4	55
SF 80×50	80		50	4	55
SF 85×85×50	85	85	50	7	55
SF 100×100×70	100	100	70	7	65
SF 150×110×70	150	110	70	10	65
SF 150×150×70	150	150	70	8	65
SF 200×100×70	200	155	80	8	65
SF 200×155×80	200	100	70	10	65
SF 225×200×80	255	200	80	12	65
SF 300×250×120	300	250	120	12	65
SF 400×350×120	400	350	120	16	65

Nylon PA66+Solid Brass Cable Gland

Material:Made from UL Nylon 66,94V-2 and tight ring from rubber.

Feature:1.Special designation,good strengthsileand none damage to electrical machine.
2.Not need to disorganization the fix terminal,cable can be inserted through directly then tighten easy and save time.

Application:Used for machinery control box,distribution plate,machine and electrical.Etc.

Type	Thread length L1	Entry range D1	Entry thread D2	Cable gland dimensions L-L1	Locknut thread size D3
PG-07	8	3.5-3.6		23-8	16.5
PG-09	8	4.5-7	10.2	25-8	21.5
PG-11	8	5.5-10	11.5	27-8	25
PG-13.5	9	9-13	13.5	28-9	27
PG-16	10	10-14	16.5	30-10	30
PG-19	10	14-18	30	10-12	28
PG-21	11	4-18	21	38-11	37.5
PG-25	11	18-25	25	13-18	36
PG-29	11	18-25	27.5	42-11	47.5
PG-36	12	25-33	34.5	43-12	58
PG-42	13	30-38	40.5	48-13	65
PG-48	14	37-44	45.5	48-14	70
PG-63	27	42-50	60	13-18	36

Type	Threaded entry metric	Cable rangeΦ	Thread o.d.c1	Panel mounting hole	Thread length C2	Sealing nutsize F	Locknut size A
MG-12	M12×1.25	7.6-4.6	12	12.5	8.5	19	18
MG-14	M14×1.25	7.6-4.6	14	14.5	8.5	20	19
MG-16	M16×1.5	10-6	16	16.5	15	22	22
MG-18	M18×1.5	10-6	18	18.5	15	25	22
MG-20	M20×1.5	14-9	20	20.5	15	27	27
MG-24	M24×1.5	14-9	24	24.5	15	33	27
MG-25	M25×1.5	18-13	25	25.5	15	33	33
MG-27	M27×1.5	18-13	27	27.5	15	35	35
MG-32	M32×1.5	25-18	32	33	15	41	41
MG-36	M36×1.5	25-18	36	36.5	20	45	41
MG-40	M40×1.5	30-24	40	41	20	50	50
MG-50	M50×1.5	39-30	50	51	22	62	61
MG-63	M63×1.5	48.5-40	63	64	25	75	75

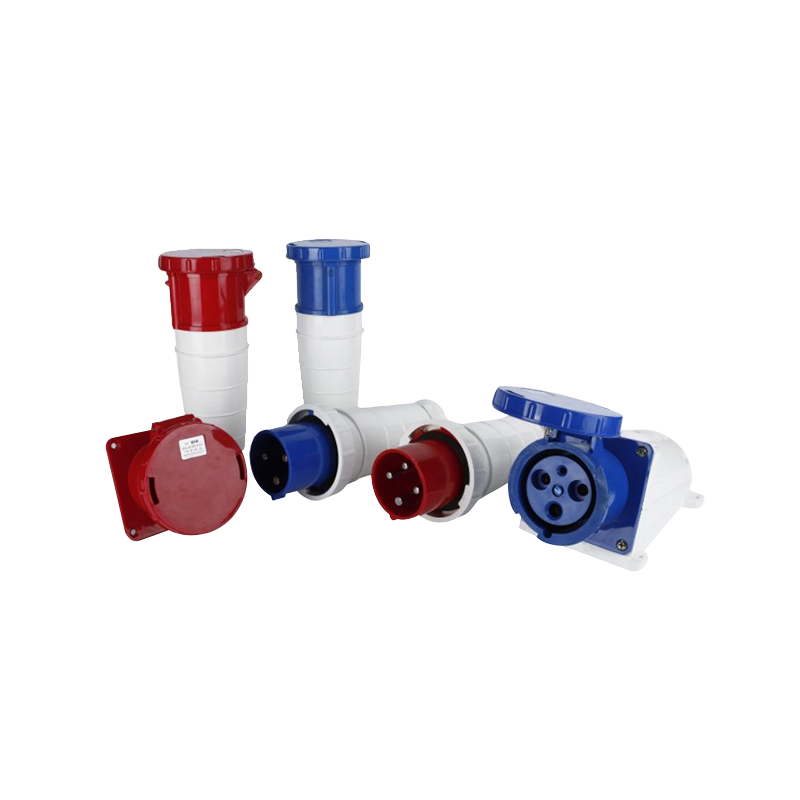

SF- First Generation IP67 Copper Industrial Plug And Socket

Core Type	Model Number	Current	Voltage Level	Waterproof	Wiring Square
3 Core	SF-013-4	16A	110V-130V~2P+E	IP44	1-2.5 mm²
3 Core	SF-023-4	32A	110V-130V~2P+E		2.5-6mm²
3 Core	SF-013	16A	220V-240V~2P+E		1-2.5 mm²
3 Core	SF-023	32A	220V-240V~2P+E		2.5-6mm²
4 Core	SF-014	16A	380V-415V~3P+E		1-2.5 mm²
4 Core	SF-024	32A	380V-415V~3P+E		2.5-6mm²
5 Core	SF-015	16A	220V-415V~3P+N+E		1-2.5 mm²
5 Core	SF-025	32A	220V-415V~3P+N+E		2.5-6mm²

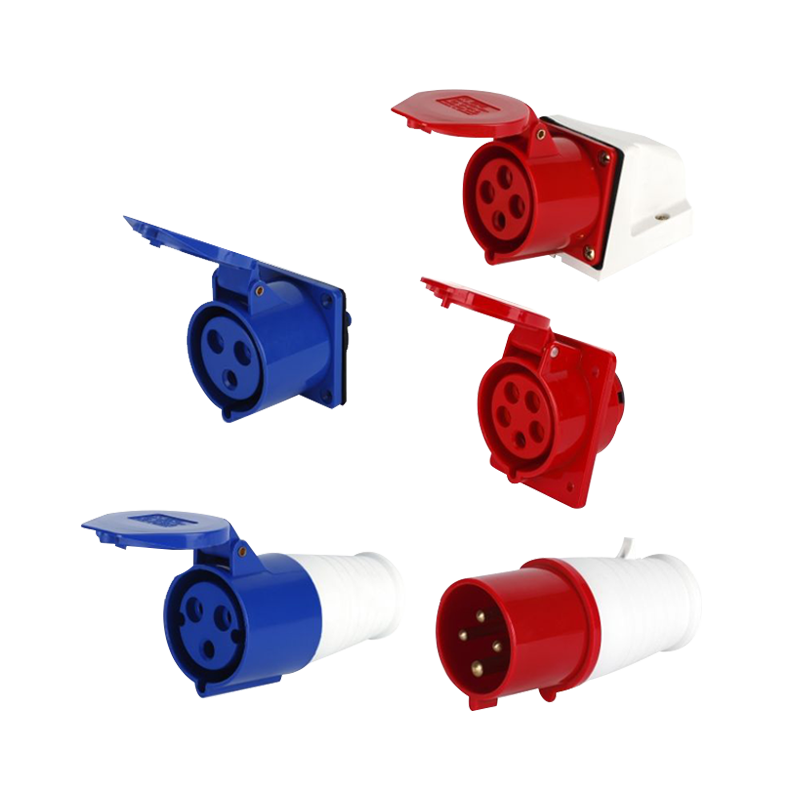

SF- First Generation IP44 Waterproof Industrial Plug And Socket

Core Type	Model Number	Current	Voltage Level	Waterproof	Wiring Square
3 Core	SF-013-4	16A	110V-130V~2P+E	IP44	1-2.5 mm²
3 Core	SF-023-4	32A	110V-130V~2P+E		2.5-6mm²
3 Core	SF-013	16A	220V-240V~2P+E		1-2.5 mm²
3 Core	SF-023	32A	220V-240V~2P+E		2.5-6mm²
4 Core	SF-014	16A	380V-415V~3P+E		1-2.5 mm²
4 Core	SF-024	32A	380V-415V~3P+E		2.5-6mm²
5 Core	SF-015	16A	220V-415V~3P+N+E		1-2.5 mm²
5 Core	SF-025	32A	220V-415V~3P+N+E		2.5-6mm²

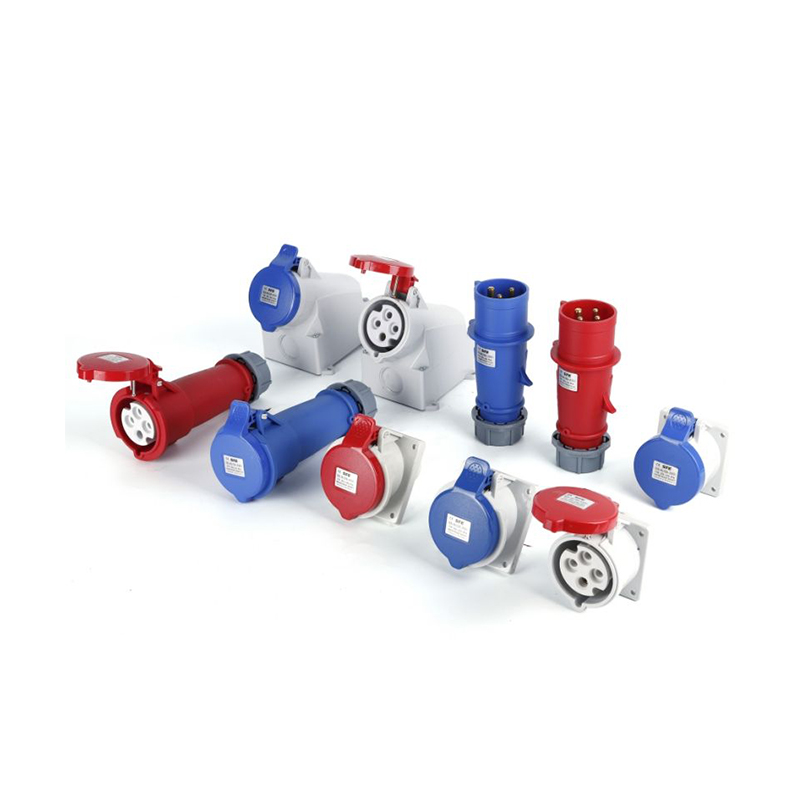

SFE-Third Generation IP44 Industrial Plug Socket And Connector

Core Type	Model Number	Current	Voltage Level	Waterproof	Wiring Square
3 Core	SFK-247	16A	110V-130V~2P+E	IP44	1.5-2.5 mm²
3 Core	SFK-259	32A	110V-130V~2P+E		4-6mm²
3 Core	SFK-248	16A	220V-240V~2P+E		1.5-2.5 mm²
3 Core	SFK-260	32A	220V-240V~2P+E		4-6mm²
4 Core	SFK-252	16A	380V-415V~3P+E		1.5-2.5 mm²
4 Core	SFK-264	32A	380V-415V~3P+E		4-6mm²
5 Core	SFK-3	16A	220V-380V~/240V-415V~ 3P+N+E		1.5-2.5 mm²
5 Core	SFK-4	32A	220V-380V~/240V-415V~ 3P+N+E		4-6mm²

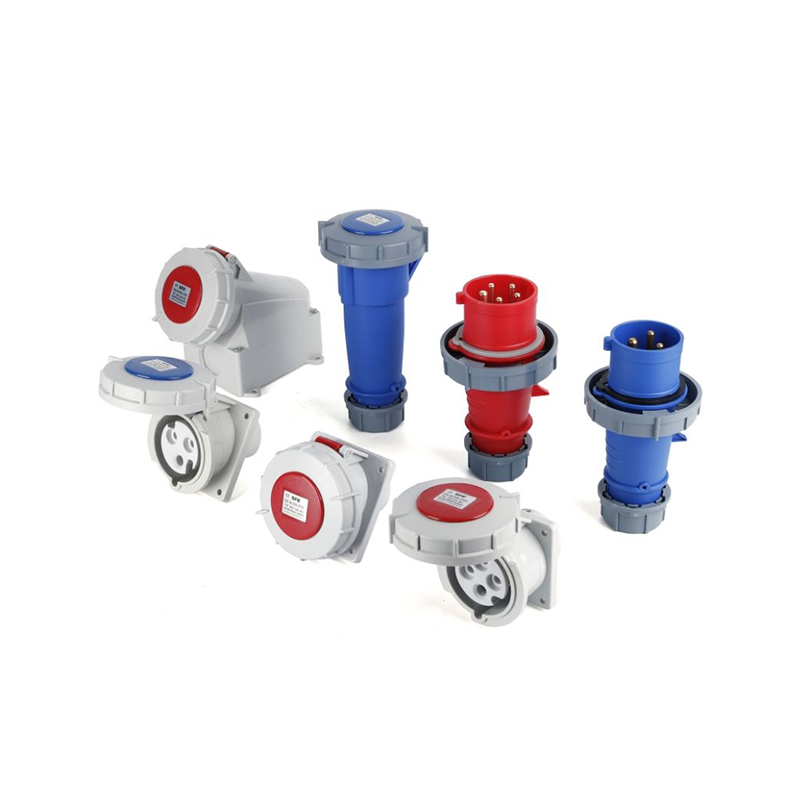

SFE-Third Generation IP67 Industrial Plug Socket And Connector

Core Type	Model Number	Current	Voltage Level	Waterproof	Wiring Square
3 Core	SFK-247	16A	110V-130V~2P+E	IP44	1.5-2.5 mm²
3 Core	SFK-259	32A	110V-130V~2P+E		4-6mm²
3 Core	SFK-248	16A	220V-240V~2P+E		1.5-2.5 mm²
3 Core	SFK-260	32A	220V-240V~2P+E		4-6mm²
4 Core	SFK-252	16A	380V-415V~3P+E		1.5-2.5 mm²
4 Core	SFK-264	32A	380V-415V~3P+E		4-6mm²
5 Core	SFK-3	16A	220V-380V~/240V-415V~ 3P+N+E		1.5-2.5 mm²
5 Core	SFK-4	32A	220V-380V~/240V-415V~ 3P+N+E		4-6mm²

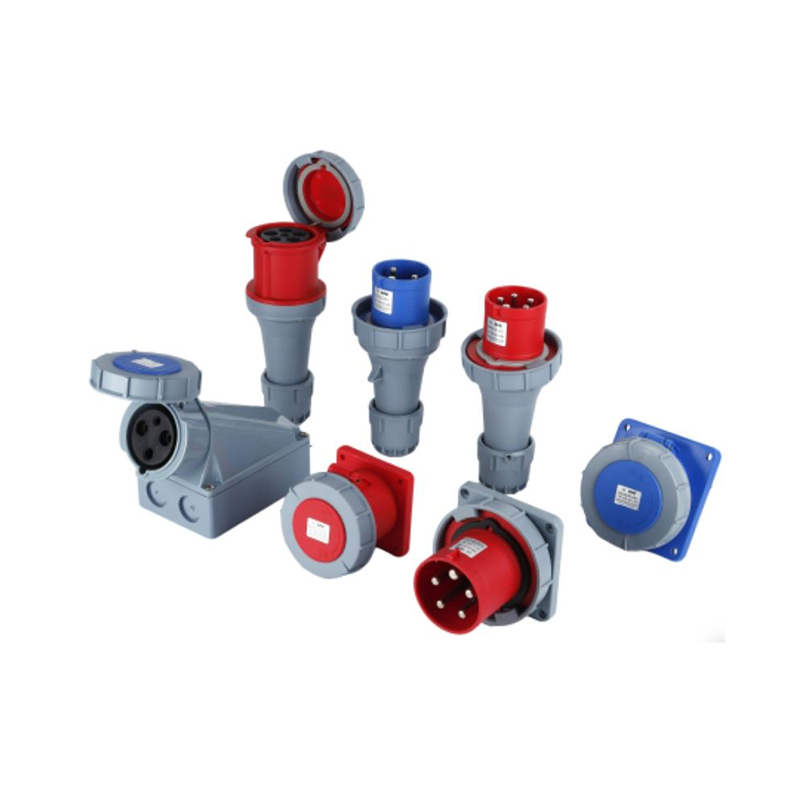

SFE-Second Generation IP44 Dustproof Industrial Plug And Socket

Core Type	Model Number	Current	Voltage Level	Waterproof	Wiring Square
3 Core	SFW-013-4	16A	110V-130V~2P+E	IP44	1-2.5 mm²
3 Core	SFW-023-4	32A	110V-130V~2P+E		2.5-6mm²
3 Core	SFW-013	16A	220V-240V~2P+E		1-2.5 mm²
3 Core	SFW-023	32A	220V-240V~2P+E		2.5-6mm²
4 Core	SFW-014	16A	380V-415V~3P+E		1-2.5 mm²
4 Core	SFW-024	32A	380V-415V~3P+E		2.5-6mm²
5 Core	SFW-015	16A	220V-380V~/240V-415V~3P+N+E		1-2.5 mm²
5 Core	SFW-025	32A	220V-380V~/240V-415V~3P+N+E		2.5-6mm²

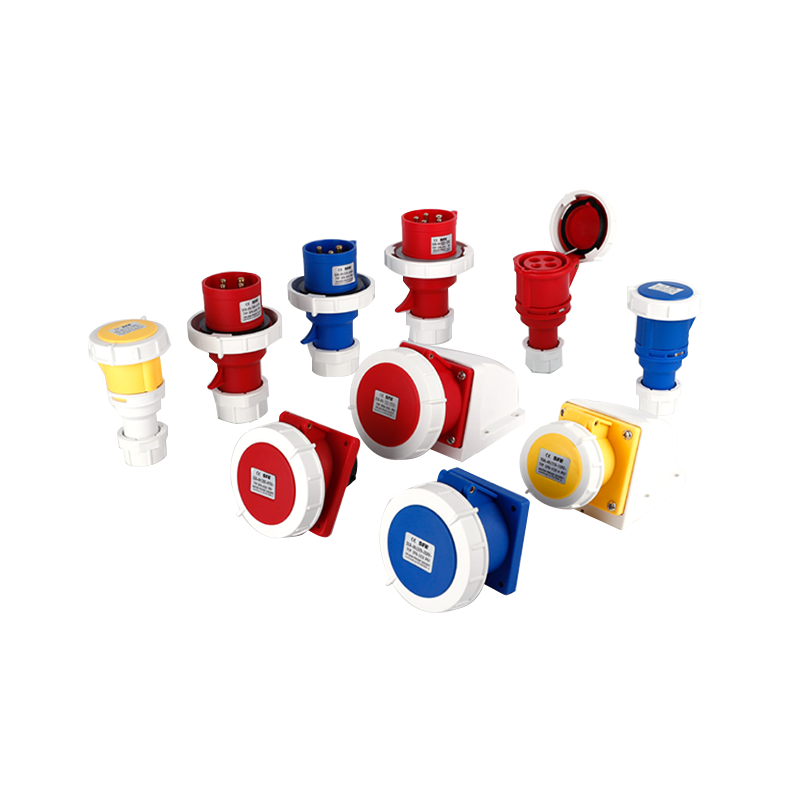

SFE-Second Generation IP67 Waterproof Industrial Plug And Socket

Core Type	Model Number	Current	Voltage Level	Waterproof	Wiring Square
3 Core	SFW-013-4	16A	110V-130V~2P+E	IP44	1-2.5 mm²
3 Core	SFW-023-4	32A	110V-130V~2P+E		2.5-6mm²
3 Core	SFW-013	16A	220V-240V~2P+E		1-2.5 mm²
3 Core	SFW-023	32A	220V-240V~2P+E		2.5-6mm²
4 Core	SFW-014	16A	380V-415V~3P+E		1-2.5 mm²
4 Core	SFW-024	32A	380V-415V~3P+E		2.5-6mm²
5 Core	SFW-015	16A	220V-380V~/240V-415V~3P+N+E		1-2.5 mm²
5 Core	SFW-025	32A	220V-380V~/240V-415V~3P+N+E		2.5-6mm²
