High Current Power Connectors Factory

Introduction

In the demanding field of industrial applications, reliable and efficient electrical connections are essential. High-current plugs and sockets are crucial components that ensure the safe and effective transfer of electrical power in high-demand environments. Our high-current plugs and sockets are designed to meet the rigorous requirements of various industrial settings, providing robust performance, safety, and versatility. This product introduction will explore the attributes, advantages, features, and applications of high-current plugs and sockets, demonstrating why they are an indispensable part of modern industrial infrastructure.

Product Attributes

High-current plugs and sockets are designed to handle substantial electrical loads, with ratings ranging from 200A to 400A. They are compatible with voltages between 220V and 415V, and support configurations such as 3P+E and 3P+N+E. These products are engineered with high-grade materials to ensure durability and reliability. They feature a protection degree of up to IP67, indicating strong resistance to dust and water, which is essential for harsh industrial environments.

Product Advantages

1. High Capacity Handling
    - Large Current Range: High current plugs and sockets can handle currents from 200A to 400A, suitable for heavy-duty industrial applications.
    - Wide Voltage Compatibility: These products support a broad voltage range, making them versatile for different electrical systems.

2. Durability
    - Robust Construction: Made from high-quality, durable materials, high-current plugs and sockets are built to withstand harsh industrial conditions.
    - Long Service Life: The construction ensures a long operational lifespan, reducing the need for frequent replacements.

3. Safety
    - High Protection Rating: With protection degrees up to IP67, these plugs and sockets offer protection against dust and water, enhancing operational safety.
    - Secure Connections: They provide secure and stable electrical connections, minimizing the risk of disconnections and electrical hazards.

Product Features

1. Modular Design
    - Flexible Configurations: The modular design allows various configurations to meet specific industrial needs, providing flexibility in installation and application.
    - Ease of Integration: These plugs and sockets can be easily integrated into existing industrial setups, facilitating smooth upgrades and expansions.

2. Enhanced Safety Features
    - Overload Protection: Equipped with overload protection mechanisms, high current plugs, and sockets safeguard connected equipment from electrical surges and overloads.
    - Insulation and Sealing: The enhanced insulation and sealing features protect against electrical shocks and environmental factors, ensuring user safety.

3. Efficiency
    - Low Maintenance: Designed for minimal maintenance requirements, these products help reduce downtime and maintenance costs.
    - Energy Efficient: High current plugs and sockets are designed to operate efficiently, contributing to energy savings in industrial operations.

Product Applications

1. Manufacturing Facilities
    - High current plugs and sockets are ideal for manufacturing facilities that operate heavy machinery and equipment. Their ability to handle high currents and voltages ensures a reliable power supply, enhancing production efficiency.

2. Construction Sites
    - These plugs and sockets provide robust and safe connections for high-power tools and machinery in construction sites. Their durability and protection against dust and water make them suitable for the challenging conditions of construction environments.

3. Warehousing and Logistics
    - Warehouses and logistics centers benefit from high current plugs and sockets by ensuring reliable power for conveyor systems, automated sorting equipment, and lighting. Their versatility and safety features support efficient and safe operations.

Conclusion

High-current plugs and sockets play a vital role in the industrial sector, offering a combination of high capacity, durability, and safety. Their advanced features and wide range of applications make them an essential component for reliably powering industrial equipment and machinery. By incorporating high-current plugs and sockets into their electrical infrastructure, industries can achieve enhanced operational efficiency, safety, and flexibility, meeting the demands of modern industrial processes.

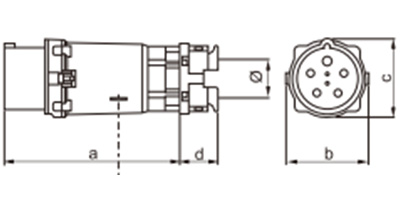

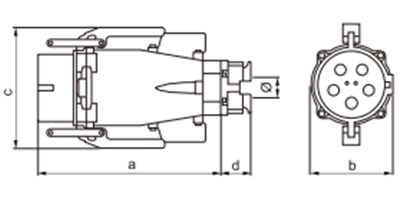

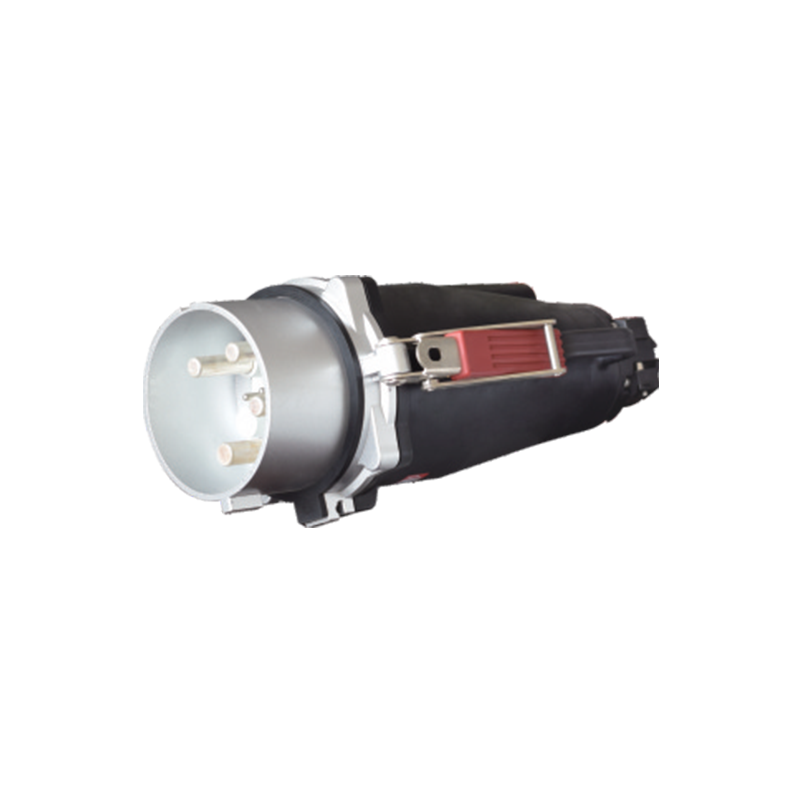

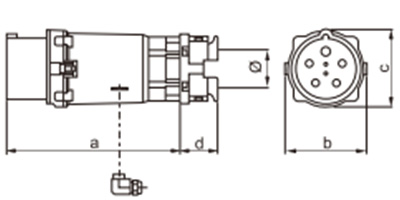

SF-0542 High Current Plugs And Sockets

SF-0542

Earth contact position 6h
Rated current(A) 200
Pole 4
Dimension(mm) a 302
b 142
c 134
d 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  200A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

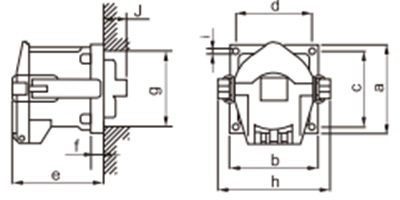

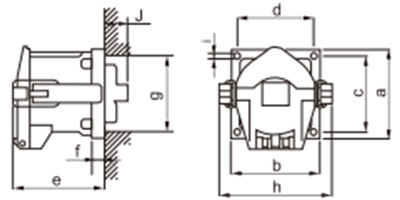

SF-3542 High Current Plugs And Sockets

SF-3542

Earth contact position 6h
Rated current(A) 200
Pole 4
Dimension(mm) a 140
b 140
c 120
d 120
e 145
f 20
g 120
h 178
i 9
j 36
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  200A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

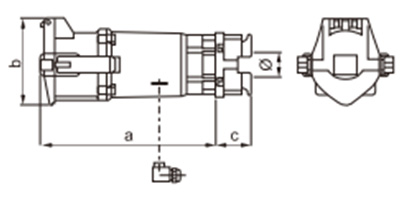

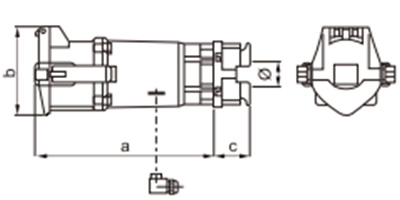

SF-2542 High Current Plugs And Sockets

SF-2542

Earth contact position 6h
Rated current(A) 200
Pole 4
Dimension(mm) a 328
b 162
c 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  200A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

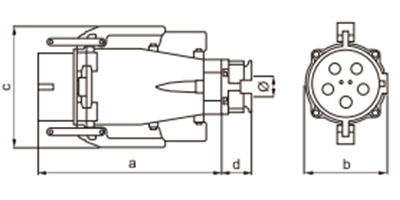

SF-0552 High Current Plugs And Sockets

SF-0552

Earth contact position 6h
Rated current(A) 200
Pole 5
Dimension(mm) a 302
b 142
c 134
d 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  200A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

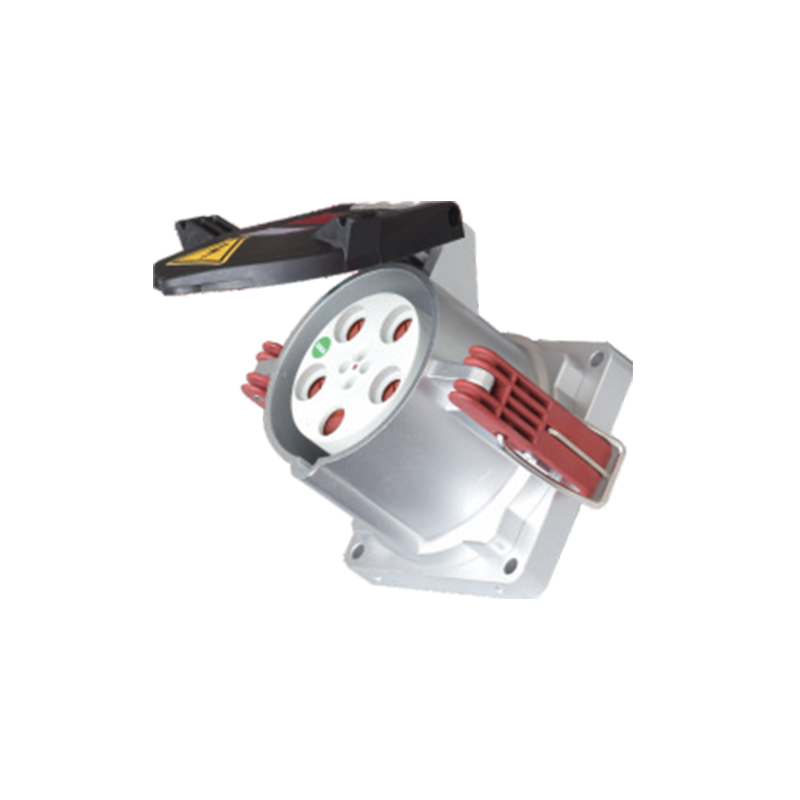

SF-3552 High Current Plugs And Sockets

SF-3552

Earth contact position 6h
Rated current(A) 200
Pole 5
Dimension(mm) a 140
b 140
c 120
d 120
e 145
f 20
g 120
h 178
i 9
j 36
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  200A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

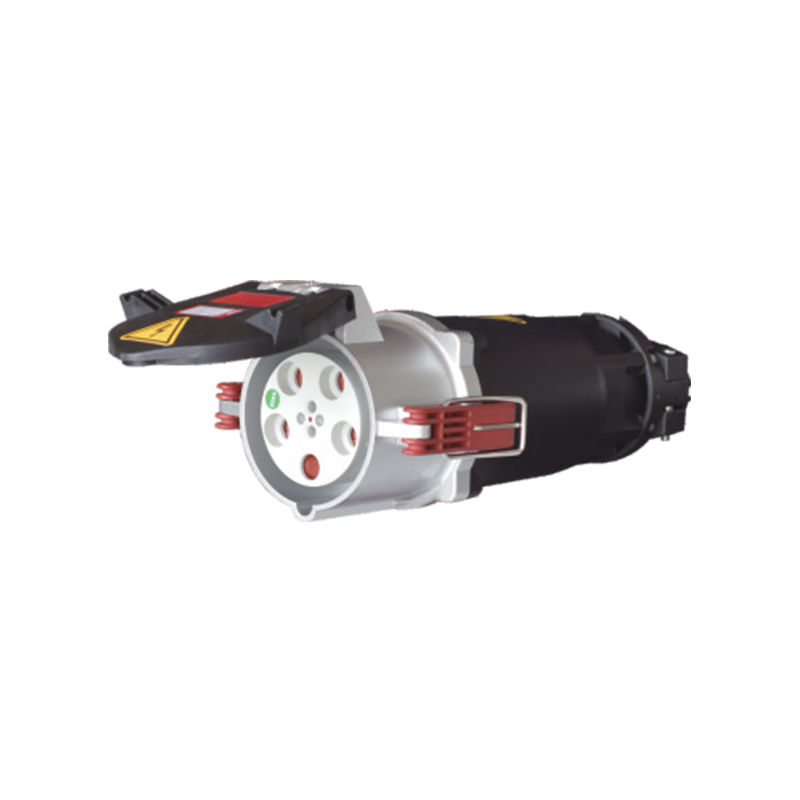

SF-2552 High Current Plugs And Sockets

SF-2552

Earth contact position 6h
Rated current(A) 200
Pole 5
Dimension(mm) a 328
b 162
c 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  200A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

SF-0642 SF-0742 High Current Plugs And Sockets

SF-0642 SF-0742

Earth contact position 6h
Rated current(A) 250，400
Pole 4
Dimension(mm) a 402
b 179
c 264
d 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  250A, 400A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

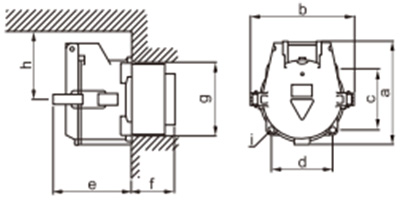

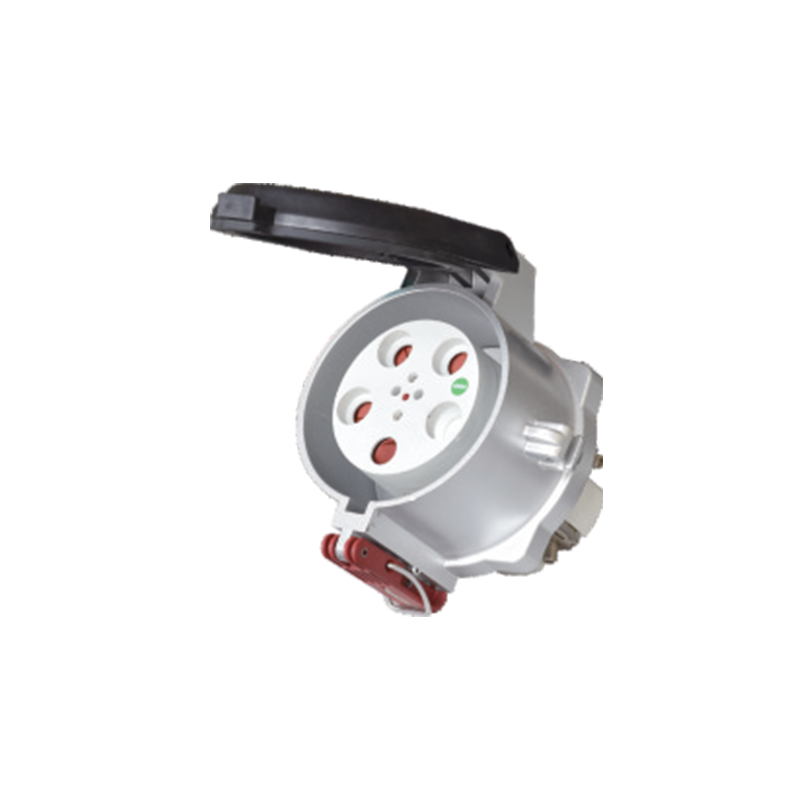

SF-3642 SF-3742 High Current Plugs And Sockets

SF-3642 SF-3742

Earth contact position 6h
Rated current(A) 250，400
Pole 4
Dimension(mm) a 213
b 216
c 127
d 127
e 157
f 90
g 153
h 140
i 6
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  250A, 400A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

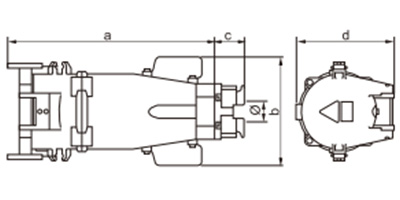

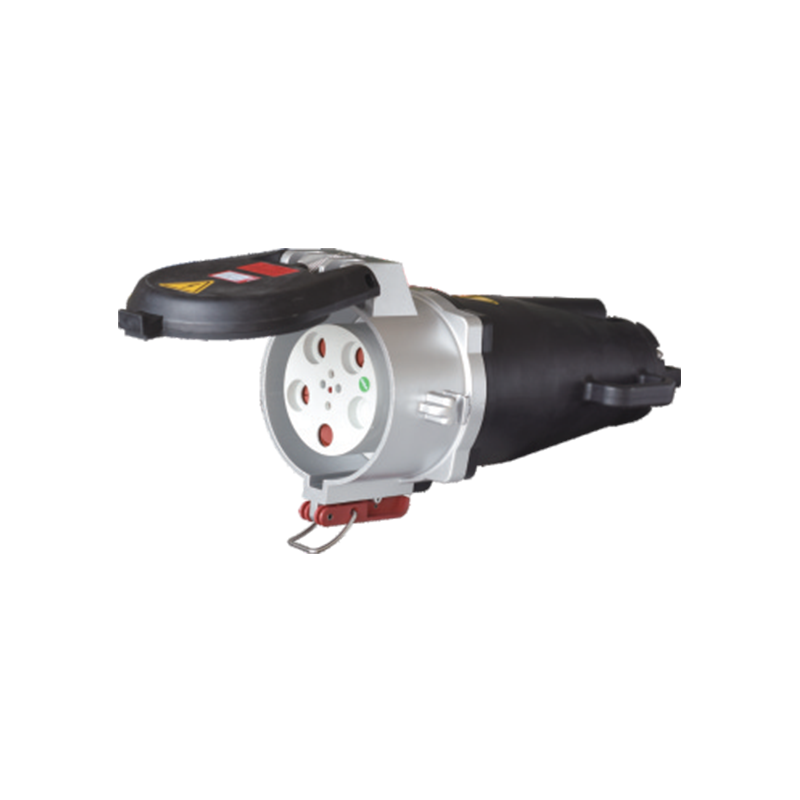

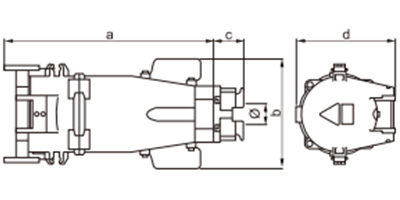

SF-2642 SF-2742 High Current Plugs And Sockets

SF-2642 SF-2742

Earth contact position 6h
Rated current(A) 250，400
Pole 4
Dimension(mm) a 447
b 238
c 65
d 213
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  250A, 400A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

SF-0652 SF-0752 High Current Plugs And Sockets

SF-0652 SF-0752

Earth contact position 6h
Rated current(A) 250，400
Pole 5
Dimension(mm) a 402
b 179
c 264
d 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  250A, 400A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

SF-3652 SF-3752 High Current Plugs And Sockets

SF-3652 SF-3752

Earth contact position 6h
Rated current(A) 250，400
Pole 5
Dimension(mm) a 213
b 216
c 127
d 127
e 157
f 90
g 153
h 140
i 6
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  250A, 400A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

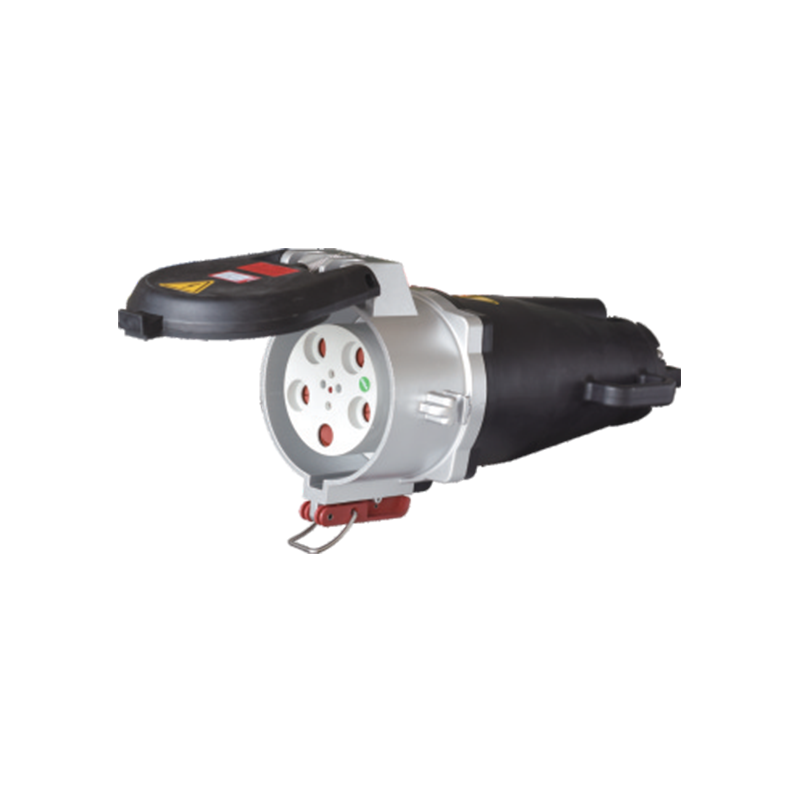

SF-2652 SF-2752 High Current Plugs And Sockets

SF-2652 SF-2752

Earth contact position 6h
Rated current(A) 250，400
Pole 5
Dimension(mm) a 447
b 238
c 65
d 213
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Contact us
Current(A):  250A, 400A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67
