High Current Plugs And Sockets Manufacturer: Power Connections That Handle the Load

Factories run on electricity. Data centers. Construction sites. Shipyards. Event stages. Anywhere heavy equipment plugs into a power source, the connection point matters. A loose fit arcs. An under-rated housing melts. A poorly crimped terminal overheats and shuts the job down. A High Current Plugs And Sockets Manufacturer builds connectors that carry serious amperage without degrading. They resist water, dust, and the daily abuse of industrial environments. They mate securely and release without a fight. Here is what electrical contractors, panel builders, and equipment distributors should know.

What Happens Inside a High-Current Connection

Current passing through a pin and sleeve generates heat. The contact area, the base metal, the spring pressure in the socket, all of it determines whether that heat stays manageable or climbs until something fails.

Cable termination inside the plug body is where field failures like to hide. Screw terminals that loosen under vibration. Crimp connections done with the wrong die. A High Current Plugs And Sockets Manufacturer that ships connectors with properly secured terminals and clear torque specifications prevents the slow loosening that turns into a burnt contact six months later.

The Pin and Sleeve Standard That Runs Industrial Sites

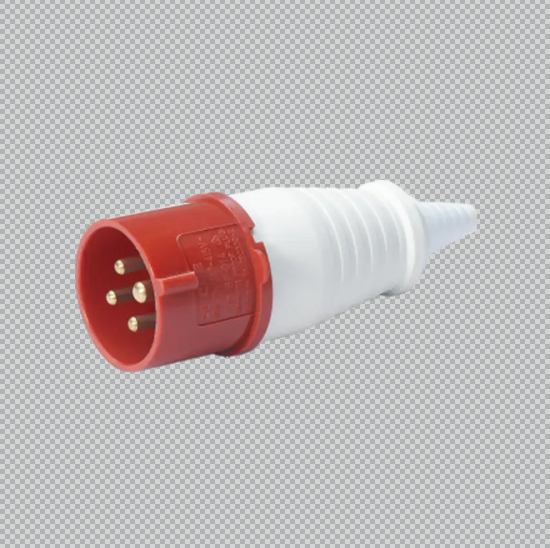

IEC 60309 governs most of the industrial plugs and sockets used globally. The standard fixes the pin positions by voltage and frequency so a 400V plug cannot be jammed into a 230V socket. The keying is physical. A High Current Plugs And Sockets Manufacturer building to this standard produces connectors where the color coding tells the voltage at a glance. Yellow for 110V. Blue for 230V. Red for 400V. The clock position of the earth pin relative to the keyway prevents mismating across different voltages within the same color.

Ratings start at 16A and climb through 32A, 63A, and 125A. The 16A and 32A sizes cover most portable equipment. The 63A and 125A sizes feed distribution boards, stage lighting rigs, and ship-to-shore connections. A High Current Plugs And Sockets Manufacturer offering the full range gives the contractor a single source for everything from a small tool hookup to a main power inlet.

Here is what the IEC 60309 standard enforces across the range:

• Earth pin position and keyway set by voltage and frequency
• Color coding by voltage for instant visual identification
• Current ratings from 16A to 125A with matching pin diameters
• IP ratings from splash-proof to submersible depending on the application

Where the Wrong Connector Shows Its Weakness

Most failures happen slowly and then become obvious in the worst conditions. A connector that ran fine for months under light load gets pushed to rated current on a hot day and the housing distorts. The contacts shift. The connection resistance spikes. The plastic browns around the pin base.

A High Current Plugs And Sockets Manufacturer that uses glass-reinforced nylon with a heat deflection temperature comfortably above the worst-case operating condition builds connectors that keep their shape. Unreinforced or low-grade nylon softens at temperatures that a fully loaded industrial plug reaches regularly. The difference is visible on inspection. Burnt pin sockets. Melted housing around the contact carriers. Cracks radiating from the cable entry.

Cable glands at the entry point get overlooked in procurement and become the first failure point in the field. A gland that does not clamp the cable jacket properly transfers tension to the terminals. A gland with an undersized sealing ring lets water track along the cable into the plug body. A High Current Plugs And Sockets Manufacturer that matches gland size to the recommended cable diameter range and includes strain relief as standard prevents the callbacks that come from field wiring failures.

Factory and Site Installations Where Plugs Earn Their Keep

Industrial plugs and sockets live in places where failure stops work. A construction site running tower cranes and welding sets off a temporary distribution board. A food processing plant with nightly washdowns. A data center where a generator inlet box sits waiting for a power cut that might come once a year. The connector sitting idle for eleven months still has to work on month twelve.

Shore power connections for ships and marina berths run in salt-laden air. Brass contacts corrode fast in that environment unless they are plated and sealed. A High Current Plugs And Sockets Manufacturer serving marine applications uses nickel or silver-nickel plating and gasket materials that survive constant UV and salt spray. The same connectors show up in ports, container terminals, and offshore platforms where the environment never lets up.

What to Check Before Stocking or Specifying

A datasheet photo and a rated current figure are not enough. A High Current Plugs And Sockets Manufacturer should provide the heat deflection temperature of the housing material, the IP test certificate, and the contact material specification. Ask for the temperature rise at rated current for the specific amperage being ordered. A connector that runs ten degrees hotter at the contact than a competitor's equivalent is building toward a failure.

The locking mechanism on a plug and socket takes abuse. Twist-lock designs wear if the ramp angle is cut wrong or the locking ring is molded from soft material. A High Current Plugs And Sockets Manufacturer that tests the locking mechanism through thousands of mating cycles catches wear patterns before the design reaches production. Loose locking rings cause intermittent connections that arc and burn contacts.

A high current plug and socket is not complicated. Two connectors mate. Current flows. But the metal, the plastic, the gasket, and the cable entry all have to hold up under load, weather, and time. Choose a manufacturer that specifies materials honestly, tests to the standard, and supports the product after the sale. Your connections will carry the current without drama. That is the job of a High Current Plugs And Sockets Manufacturer.
